Razor Wire Fence used for prison and key project protection

Razor barbed wire fencing and razor wire concertina makes the majority of our products. Razor barbed wire fencing is usually made of galvanized steel blade or stainless steel blade. Two pieces of stainless steel razor wire or zinc-coated razor wire can be bounded together by clips to make it stronger. The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful outlook and practical property.

Material for Razor Barbed Wire Fencing: Galvanized blade, stainless steel blade.

Features: Compact and rational structure, high safety factor, for the protection of prison and key project.

Technical note: Razor barbed wire fencing can be made according to the actual dimension of customer; the special specification is manufactured according to the drawing.

In order to install a razor concertina fencing needs razor barbed wire and other items. There is a fencing example:

  • Concertina barbed wire: 750 mm Dia.
  • Barbed wire.
  • Fabric: 3.76/4.88 mm, 3 m high, mesh 50 mm × 50 mm coated.
  • Brace rail pipe; 89.9 mm, 4 m high length coated epoxy green.
  • Line post: hollow section 100 × 100 × 4 × 3000 mm with base plate and top cover (post cap) coated.
  • Double arm 50 × 50 × 5 mm each 500 mm long with 6 notches (epoxy angle plated).
  • Tie wire: 2.5 mm / 3.76 PVC coated.
  • Base plate 300 × 300 × 6 mm with epoxy paint finish.
  • Slats.
Razor Barbed Wire Fencing
Razor Barbed Wire Fencing
Razor Wire Mesh Fencing
razor wire mesh fencing

Mobile security barriers (rapid deployment of high density razor wire)

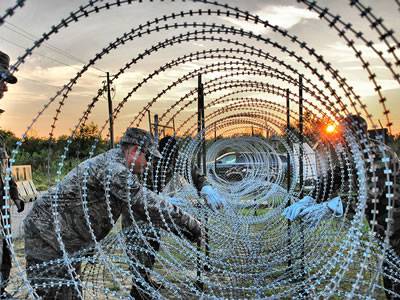

Several soldiers are fastening the razor wires.
Razor wire mesh for protecting military sites' safety.
An orange deployment truck with razor wire on the ground.
Razor wire mesh rapid deployment system.
  1. The system is designed to provide rapid protection - the 75-1000 meter barriers of barbed tape/razor wire coils can be deployed in seconds.
  2. Barriers are fully re-usable.
  3. Equipment is supplied to uplift and recompress the barrier into modules, simple to handle and compact to store.
  4. A single carrier unit can be quickly refilled to drop many miles of barrier in a short space of time.
  5. Systems can be tailored to meet customers exact requirements.
  6. No Police or Military Organization can afford to be without this valuable tool.
Razor Wire
Outside Diameter No.of Loops Standard Length per Coil Type Notes
450 mm 33 8 m CBT-65 Single coil
500 mm 41 10 m CBT-65 Single coil
700 mm 41 10 m CBT-65 Single coil
960 mm 53 13 m CBT-65 Single coil
500 mm 102 16 m BTO-10.15.22 Cross type
600 mm 86 14 m BTO-10.15.22 Cross type
700 mm 72 12 m BTO-10.15.22 Cross type
800 mm 64 10 m BTO-10.15.22 Cross type
960 mm 52 9 m BTO-10.15.22 Cross type
