Prison Security Fence with Razor Barbed Wire for High Security

Prison security fencing is also called prison security welded fence, which is made from mild or stainless steel. The mesh aperture of 76.2 mm × 12.7 mm fabricated by 4 mm diameter steel wire makes it extremely hard to cut and climb. With razor barbed wire topping, prison security fence can provide high level security, and it is often used in prison, hospital, military base, power station, railway station, airport and industrial factory.

A galvanized prison security fencing of high height and small mesh size is finger-proof and accompanied by razor wire.
PSF-01: Prison security welded fence is often accompanied by razor wire for prison fencing.
With barbed wire topping, a white PVC coated prison security fence is installed at a power station.
PSF-02: Combined with barbed wire, prison security fencing is suitable for power station fencing.

Specifications of prison security fencing

  • Material: mild steal, stainless steel.
  • Surface treatment: galvanized and PVC coated.
    Colors of PVC coated roll top fence are green, white, grey, red, black, yellow, blue.
  • Hole shape: rectangle.
  • Wire diameter: 0.165 in. (4 mm).
  • Horizontal wire spacing: 0.5 in. (12.7 mm).
  • Vertical wire spacing: 3 in. (76.2 mm).
  • Height: 1800 to 6000 mm.
  • Panel width: 2400 mm, 2515 mm.
  • Tensile strength: 500–550 MPa.
  • Framework
    • Post: RHS post or H post.
    • Rail: round rail or square rail.
  • Fittings: 40 × 6 mm flat bar clamp, galvanized M8 cup head bolts.
  • Matching security gates
    • Single leaf gate: 1.2 m wide.
    • Double leaf gate: 3.8 m wide.
  • Fence topping
    • Barbed wire
      Barbed wire arms for three to six strands of barbed wire to meet the security requirement.
      • design number
        • 12-4-3-14R having 4-point barbs spaced 3 in. on center.
        • 12-4-5-14R having 4-point barbs spaced 5 in. on center.
    • Razor wire (0.025 in. thickness)
      • 18/24 in. single coil helical.
      • 18/24/30/40/60 in. single coil concertina.
      • 24/30 in. double coil concertina.
  • Warranty: 5 years.
  • Maintenance
    • Periodic maintenance inspections.
    • Regular cleaning program.
    • PVC or zinc re-coat.

Features of prison security fencing

  • High rigidity, high level security welded wire mesh panels.
  • Available with barb wire or razor wire topping.
  • Finger-proof dense wire spacing, difficult to climb and cut.
  • Corrosion resistant.
  • Maintain a clear sight through horizontal aperture.
  • Beautiful in appearance, wide range of color.
  • Easy to deliver and install.
  • Long service life.
  • Simple to maintain.

Applications

  • Prison security fencing.
  • Hospital security fencing.
  • Military base fencing.
  • Power station fencing.
  • Electric substation fencing.
  • Railway station fencing.
  • Airport security fencing.
  • Walkway security fencing.
  • Animal enclosure fencing
  • School fencing.
  • Building fencing.
  • Road fencing.
  • Commercial location fencing.
  • Gas line fencing.
  • Industrial factory fencing.

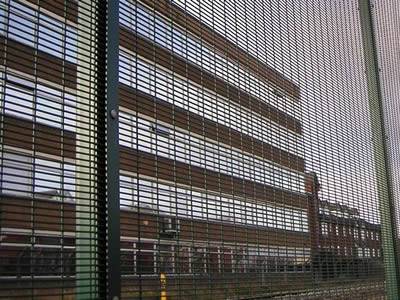

A dark green PVC coated prison security fencing is installed to surround the building.
PSF-03: Prison security fencing is widely used for building fencing to protect personal safety and property.
A dark green PVC coated prison security fencing is installed in the playground.
PSF-04: Prison security fencing is widely used for playground fencing to prevent balls out and protect the safety of the people outside the playground.
With razor wire topping, a galvanized prison security fencing is installed between the road and a piece of land.
PSF-05: Prison security fencing is often combined with razor wire for road fencing.
Combined with razor wire, a black PVC coated prison security fencing is installed at the railway station.
PSF-06: Prison security fencing is frequently found in railway station to protect the safety of people.
A galvanized prison security fencing is installed in electric substation for its anti-climb high security feature.
PSF-07: Prison security fencing is widely used at electric substation because of its high security.
A galvanized prison security fencing of small mesh size is installed in prison.
PSF-08: Welded wire security barrier for prison fence.
With razor wire topping, a dark green PVC coated prison security fence is installed between farm and road.
PSF-09: Prison security fence is widely used for farm fencing.
A black PVC coated prison security fence is installed at the border of two pieces of land.
PSF-10: Prison security fence is often used for border fencing.
