Roll Top Fence of Unique Roll Top and Bottom Structure for Safety

Roll top fence is also called roll top welded fence, which is made from mild or stainless steel. Its features of unique roll top and bottom structure and various colors give it a visual appealing appearance. And with high rigidity and better safety, roll top fence is widely used for schools, parks, recreational playgrounds, swimming pools, sports fields, airports, and company premises fencing.

Roll top fence has rolled beam section at the top and bottom edge of each panel with no sharp or raw edges that is installed as swimming pool fencing.
RTF-01: Roll top fence is ideal for swimming pool fencing.

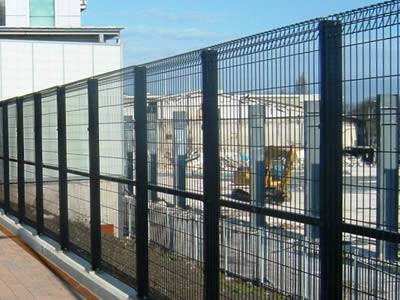

A black roll top fence with a intermediate rail and unique roll top and bottom structure is high and safe, and it is installed between the road and construction site.
RTF-02: Roll top fence is widely used for construction site fencing.

Specifications of roll top fence

  • Material: mild steal, stainless steel.
  • Surface treatment: galvanized and PVC coated.
    Colors of PVC coated roll top fence are green, white, grey, red, black, yellow, blue.
  • Shapes of roll top: triangle, round.
  • Horizontal wire diameter: 5, 6.3 mm.
  • Vertical wire diameter: 5, 7.5 mm.
  • Mesh opening: 50 × 100 mm, 50 × 150 mm, 50 × 200 mm, upto 50 × 700 mm.
  • Fence height: 900–2400 mm.
  • Panel width: 2500–3000 mm.
  • Roll Top Mesh Fence and Accessories Sizes
    Fence Height Panel Size-1 H × W Panel Size-2 H × W Inter clips Corner clips
    900 mm 900 × 2500 mm 900 × 3000 mm 3 6
    1200 mm 1200 × 2500 mm 1200 × 3000 mm 4 8
    1500 mm 1500 × 2500 mm 1500 × 3000 mm 4 8
    1800 mm 1800 × 2500 mm 1800 × 3000 mm 5 10
    2000 mm 2000 ×2500 mm 2000 × 3000 mm 6 12
    2400 mm 2 × 1200 × 2500 mm 2 × 1200 × 3000 mm 7 14
  • Framework
    • Post
      • Wall thickness: 2 mm, 2.5 mm.
      • length: 1500, 1800, 2100, 2500, 2700, 3100 mm.
      • Cross section
        • Round post: 60 mm, 75 mm diameter pipe.
        • Square post: 50 × 50 mm, 60 × 60 mm, 65 × 65 mm.
        • Rectangle post: 80 × 60 mm.
      • Post spacing: 3.025 m.
    • rail
  • Fittings: bolt, nut, post cap, roll top weld fence panel, inter clip, corner clip, U-clip.
  • Gates width: 960 mm.
  • Maintenance
    • Periodic maintenance inspections.
    • Regular cleaning program.
    • PVC or zinc re-coat.

Features

  • Unique roll top and bottom structure.
  • No sharp or raw edges.
  • High rigidity and better safety.
  • Beautiful in appearance.
  • Wide range of color.
  • Excellent through vision.
  • Easy to deliver and install.
  • Corrosion resistant.
  • Long service life.
  • Simple to maintain.

Applications

  • Gardens.
  • Farms.
  • Houses.
  • Schools
  • Parks.
  • Recreational playgrounds.
  • Swimming pools.
  • Sports fields.
  • Airports.
  • Company premises.
A dark green PVC coated roll top fence with unique roll top and bottom structure is installed in a court.
RTF-03: Roll top fence is widely used for court fencing.

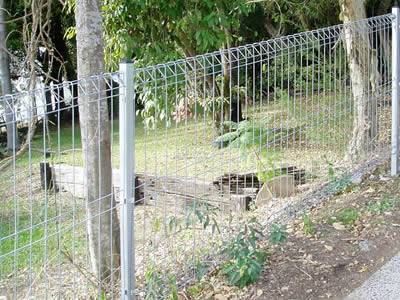

A galvanized roll top fence is installed between the forest and the road.
RTF-04: Roll top fence is widely used for forest fencing to prevent the damage from cars.
A dark green roll top fence is installed in stadium.
RTF-05: Roll top fence is ideal in stadium for fitness equipment fencing.
A galvanized roll top fence is installed at the road sides to lead people to the village.
RTF-06: Roll top fence is widely used at the road sides.
A green roll top fence with a gate is installed at a large factory site.
RTF-07: Roll top fence is a perfect choice for factory fencing.
A galvanized roll top fence is installed between two roads.
RTF-08: Roll top fence is often installed between roads to keep safety.
A white PVC coated fence connected with square posts of different heights is installed between public place and grassland.
RTF-09: Roll top fence is used for both public place and grassland fencing.
A galvanized roll top fence is installed between a house and a ditch.
RTF-10: Roll top fence is used for house fencing, and protect the safety of people.
