Welded 3D Security Fence with Reinforcing Fold for Farm Fencing

Welded wire 3D security fence is also called curve security fence or welded wire curved security fence. It is a high security fence which is made from low carbon steel or stainless steel. There are different curve quantities on the security fence panel according to different height and single wire in each direction with horizontal reinforcing folds or beams. With strong, durable and flexible structure, 3D security fence is widely used for airport, factory, residence, garden, hospital, parking lot, railway station, park, warehouse, military site fencing.

A dark green PVC coated welded 3D security fence with 3 curves is installed as a security wall for building fencing.
W3SF-01: Welded 3D security fence is widely used for building fencing to protect personal safety and property.

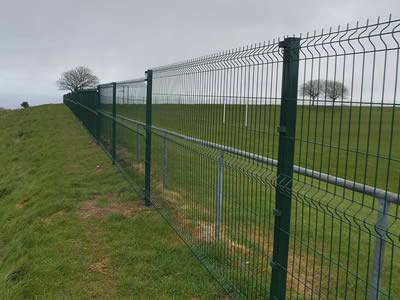

A dark green PVC coated welded 3D security fence with 3 curves is installed in a piece of farm land.
W3SF-02: Welded 3D security fence is widely used for farm fencing to prevent the damage.

Specifications of welded 3D security fence

  • Material: low carbon steel wire or stainless wire.
  • Surface treatment: zinc coated or PVC coated steel.
    PVC colors are green, white, grey, red, black, yellow, blue.
  • Panel length: 2000–3000 mm.
  • Curve quantity: 2, 3 or 4.
    • 1000–1300 mm, 2 curves.
    • 1300–1600 mm, 2 or 3 curves.
    • 1600–1900 mm, 3 curves.
    • 1900–2100 mm, 3 or 4 curves.
    • 2100–2400 mm, 4 curves.
  • Post height: 1000–4500 mm.
  • Clips material: plastic or metal.
Table 1: Panel Sizes of Welded Wire 3D Security Fence
Mesh Size (mm) Wire Diameter (mm) Panel Height (mm)
50 × 100 4.50 1050, 1200, 1500, 1800, 2100
50 × 150 4.88 1200 ,1500, 1800, 2400
50 × 200 4.98 1050, 1200, 1500, 1800, 2100, 2400
4.80 1000, 1500, 2000, 2400
Table 2: Post Specifications of Welded Wire 3D Security Fence
Post Style Post Size (mm) Post Thickness (mm)
Peach Post 50 × 70 1.2
70 × 100
Square Post 40 × 40 1.2
1.5
60 × 60 2.0
2.5
Rectangular Post 40 × 60 1.2
1.5
2.0
Round Post 38 1.2
40 1.5
42
48 2.0

Packaging

    • Panels: wrapped with plastic film in canton box and then put on metal/wooden pallet.
    • Posts: wrapped with plastic strip and in bulk or on metal/wooden pallet.
    • Accessories: placed in carton box.

Maintenance

Durable coating last over 10 years.

    • Periodic maintenance inspections.
    • Regular cleaning program.
    • PVC or zinc re-coat.

Features of welded wire 3D security fence

  • High strength, high security.
  • Strong, and flexible structure.
  • Corrosion and rust resistance.
  • Beautiful in appearance, various colors for choice.
  • Easy to deliver and install.
  • Can not only be installed on the earth, but also be installed on the concrete ground.

Applications of welded wire 3D security fence

  • Airport fencing.
  • Factory fencing.
  • Residence fencing.
  • Highway fencing.
  • Railway fencing.
  • Parking lot fencing.
  • Park fencing.
  • Warehouse fencing.
  • Garden fencing.
  • Hospital fencing.
  • Military site fencing.
  • Construction site fencing.
A white 4-curve PVC coated welded wire 3D security fence is installed between the residence and a road.
W3SF-03: Welded wire 3D security fence is often used for residence fencing to protect the residents.
A blue 2-curve welded wire 3D security fence with peach posts is installed behind a office building.
W3SF-04: Welded wire 3D security fence is often used for building fencing to prevent the damage.
A yellow PVC coated welded wire 3D security fence with four curves is installed at a garden.
W3SF-05: Welded 3D security fence is frequently used for garden fencing to protect the flowers.
A green PVC coated welded wire 3D security fence is installed as a security wall for factory fencing.
W3SF-06: Welded 3D security fence is frequently used for factory fencing to prevent the damage.
A white PVC coated welded wire 3D security fence is installed on the grassland.
W3SF-07: Welded wire 3D security fence is widely used for grassland fencing.
A green welded wire 3D security fence is installed at the playground as a wall to prevent the children drop.
W3SF-08: Welded wire 3D security fence is widely used for playground fencing.
A black PVC coated welded wire 3D security fence is installed beside the road to protect passengers.
W3SF-09: Welded wire 3D security fence is often used for road fencing to protect passengers.
A dark green PVC coated welded wire 3D security fence with 3 curves is installed between the road and trees.
W3SF-10: Welded wire 3D security fence is often used for plant protection.
