Welded Wire Fence - Galvanized or PVC Coating

Welded wire fence, also called welded fence or welded wire fencing, generally is made of low carbon steel or stainless steel. According to the surface treatment, it can be classified into galvanized welded wire fence and PVC coated welded wire fence. And the galvanized welded wire fence also can be classified into electro galvanized welded fence and hot dipped galvanized wire fence. In additional, the zinc coating process can be operated before welding or after welding. Compared with the woven wire fences, the welded wire fence has more sturdy structure and longer service life. More importantly, This kind of rigid fence can offer a convenient and rapid way to setup a barricade for a large areas and also can combine with concertina razor wire through Y-shaped post for using. Thus, it is really a good choice for safety protection.

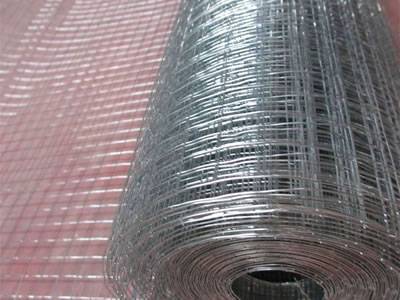

A roll of galvanize welded wire mesh with a half roll is spreading.
Galvanize welded wire mesh.
Two rolls of PVC coated welded wire mesh in green color are crossed together.
PVC coated welded wire mesh.
Many rolls of galvanized welded mesh are placed in workshop.
Galvanized welded wire fence in rolls.
Many rolls of PVC welded mesh in dark green are placed in workshop.
PVC coated welded wire fence in rolls.

Specification

  • Material: carbon steel or stainless steel.
  • Wire diameter (mm): 3.5, 4.0, 4.5, 5.0, 6.0, 8.0, etc.
  • Opening size (mm): 50 × 50, 50 × 100, 50 × 150, 50 × 200, 60 × 120, etc.
  • Surface treatment: galvanized, PVC coating, polyester powder painting, etc.
  • PVC coating color: green, blue, yellow, red, white, etc.
Welded wire fence - common specifications
Item Fence width (cm) Fence height (cm) Frame size (cm) Post shape Post specification (mm) Post height (cm)
WWF-01 200, 225, 250 103 110 × 140 rectangular shape 40 × 60 × 1.5 150
WWF-02 123 130 × 160 40 × 60 × 1.8 170
WWF-03 150 155 × 190 40 × 60 × 2 197
WWF-04 153 160 × 190 square shape 60 × 60 × 1.5 200
WWF-05 170 175 × 210 60 × 60 × 1.8 217
WWF-06 173 180 × 210 60 × 60 × 2 220
WWF-07 180 185 × 220 60 × 60 × 2.5 227
WWF-08 193 200 × 230 peach shape 50 × 70 240
WWF-09 200 205 × 240 70 × 100 250
WWF-10 203 210 × 240 round shape 48 × 1.5 250
WWF-11 240 245 × 280 290

Features

  • Rust resistance and corrosion resistance.
  • Excellent and smooth surface coating.
  • Rich optional color in PVC coating.
  • Uniform mesh opening and welding spot.
  • Firm and sturdy structure.
  • Not obtrusive and perfectly secure.
  • Easy to install.
A piece of silver white galvanized welded wire fence with square holes.
Galvanized welded wire fence with uniform mesh opening and welded point.
Five rolls PVC coated welded wire fence: two rolls in green, two rolls in dark green and one roll in black.
PVC coated welded wire fence can be produced with different color.

Applications

  • Safety guards on commercial sites: corporation, hotel, warehouse, supermarket, etc.
  • Safety guards on public sites: park, zoo, garden, lawn, airport, train station, bus station, etc.
  • Safety guards on road sites: highway, railway, bridge, etc.
  • Decorative functions: decoration for villa, garden, agriculture, infrastructure, etc.
A green PVC coated welded fence with rectangular frame and round post.
Green PVC coated wire mesh is used as security fence.
A red PVC coated welded fence with peach post and a dark green PVC coated welded fence with rectangular post.
Green and black PVC coated wire mesh is used as security fence.
A PVC coated welded wire fence in dark green with Y-shaped post and on the post there is a coil of concertina razor wire.
PVC coated welded wire fence is combined with concertina razor wire as security fence.
