Razor Wire Coil Diameter 200 - 980 mm

  • Razor wire single coil, CBT-65, 200 mm coil diameter, 33 loops, 8 m per coil.
  • Razor wire single coil, CBT-65, 200 mm coil diameter, 33 loops, 8 m per coil.
  • Galvanized razor barbed wire, BTO-22 or CBT-65, coil diameter 800 mm.
  • Razor wire, blade type: BTO-10, BTO-15, BTO-22, cross type, coil diameter: 700 mm.
  • Stainless steel 304 razor wire, BTO-30.
  • Razor wire BTO-22, outer roll size 18 and 24 inches.
  • Razor wire BTO 22, outer roll size 18 and 24 inches.
  • Stainless steel razor wire, 3 clips per coil, in 450 mm coils with blade style of BTO-22.
  • Stainless steel razor wire, BTO-30, cross type, 500 loops, 3 clips, length 10 m.
  • Razor edge wire 27 inch diameter single coil BTO-65.
  • Razor wire, coils diameter 900 mm, hot dipped galvanized, BTO-22 , razor tapes, zinc coating min. 40 g/m2, 56 loops per coil, standard cover length 15 meters, about 14.40 kg/coils.
  • Hot dipped galvanized razor wire, BTO-28, 56 loops, 5 clips, coil diameter 700 mm, length 12 m.
  • BTO-22 cross type razor wire, coil diameter 600 mm, thickness 2.5 mm, weight per coil 12 kg.
  • BTO-22 cross type razor wire, coil diameter 900 mm, thickness 2.5 mm, weight per coil 12 kg.
  • BTO-22 cross type razor wire, coil diameter 600 mm, thickness 2 mm, weight per coil 12 kg.
  • BTO-22 cross type razor wire, coil diameter 900 mm, thickness 2 mm, weight per coil 12 kg.
Two pieces of razor wire with blade type BTO-18.
Razor wire, blade type BTO-18.
Two pieces of razor wire with blade type BTO-22.
Razor wire, blade type BTO-22.
Two pieces of razor wire with blade type CBT-65.
Razor wire, blade type CBT-65.
Two pieces of razor wire is connected with clip.
Razor wire is connected with clip.
  • Hot-dipped galvanized razor wire.
    • Blade type: BTO-22.
    • Diameter: 980 mm, without clip.
    • Weight: 11 kg or 12 kg/roll.
  • Galvanized razor wire.
    • Blade type: CBT-65.
    • Wire diameter: 2.5 mm.
    • Razor thickness: 0.5 mm, 0.6 mm.
    • Razor width: 13 mm.
    • Razor spacing: 30 cm.
    • Outside diameter of roll: 15 m.
    • Number of loops: 104.
    • Standard spreading length per roll: 15 m.
    • Weight: 18 or 20 kg.
  • Galvanized and hot dipped razor wire
    • BTO 28, coil diameter 73 cm, 72 loops, 5 clips, length 15 m, weight 14 kg.
    • BTO 22, coil diameter 73 cm, 72 loops 5 clips, length 15 m, weight 13 kg.
    • BTO 28, coil diameter 73 cm, 65 loops 5 clips, length 14 m, weight 13 kg.
    • BTO 22, coil diameter 73 cm, 65 loops 5 clips, length 14 m, weight 12 kg.
    • BTO 28, coil diameter 60 cm, 65 loops 5 clips, length 15 m, weight 12 kg.
    • BTO 22, coil diameter 60 cm, 65 loops 5 clips, length 14 m, weight 11 kg.
  • Galvanized razor wire.
    • Blade type: BTO-22, BTO-28 and CBT-65.
    • Coil type: cross type with clips.
    • Zinc coating: 110 120 g/m2.
    • Size: coil diameter 730 mm × 12 m, 11.50 kg.
    • Size: coil diameter 980 mm × 15 m, 15.00 kg.
  • Razor barbed wire.
    • Blade size: BTO-22.
    • Blade thickness: 0.5 mm.
    • Core diameter: 2.5 mm.
    • Blade length: 22 mm.
    • Blade width: 15 mm.
    • Blade space: 34 mm.
  • Razor barbed wire.
    • Material: galvanized.
    • Blade type: BTO-10, cross type.
    • Core wire diameter: 2.3 mm.
    • Coil diameter: 90 cm.
    • Blade thickness: 0.4 mm.
    • Number of loops: 39.
    • Clips: 19 × 5.
    • Packing: water proof paper inside, weaving bag outside.
  • Razor barbed wire.
    • Material: galvanized.
    • Blade type: BTO-22, cross type.
    • Core wire diameter: 2.3 mm.
    • Coil diameter: 60 cm.
    • Blade thickness: 0.4 mm.
    • Number of loops: 30.
    • Clips: 15 × 5.
    • Packing: water proof paper inside, weaving bag outside.
  • Cross type razor barbed wire.
    • Material: electro-galvanized.
    • Blade type: BTO-10, cross type.
    • Core wire diameter: 2.3 mm.
    • Coil diameter: 40 cm, 50 cm and 60 cm.
    • Blade thickness: 0.4 mm.
    • Number of loops: 30.
    • Clips: 15 × 3 clips per loop.
    • Packing: water proof paper inside, weaving bag outside.
  • Hot dipped galvanized razor wire.
    • Blade type: BTO-22.
    • Thickness: 0.5 mm.
    • Wire diameter: 2.5 mm.
    • Barb length: 22 mm.
    • Barb width: 16 mm.
    • Barb spacing: 34 mm.
    • Outside diameter: 500 mm.
    • Cover length: 16 m.
    • Loops: 102.
    • Weight: 13.6 kg.
  • Razor wires, BTO-22.
    • 45 cm coil × 55 rounds with clips, 27 m length.
    • 45 cm coil × 33 rounds without clips, 4 m length.
    • 30 cm coil × 55 rounds with clips 6 m length.
    • 30 cm coil × 55 rounds without clips 3.5 m length.
  • Barbed razor wire.
    • Material: stainless steel, grade 304.
    • Diameter of wire: 2.5 mm.
    • Blade size: length 65 mm, width 21 mm.
    • Spacing of blades: 100 mm.
    • Coil diameter: 3'-2" or 960 mm.
    • Spiral turns per coil: 53 nos.
    • Stretch length per coil: 11 m or 15 m.
    • Type: CBT-65 (galvanized).
  • Razor wire.
    • Material: stainless steel.
    • Blade type: BTO-22.
    • Blade space: 60 mm.
    • Coil size: 30 - 50 m length × 0.98 m/0.73 m height.
  • Razor wire.
    • Blade type: CBT-65.
    • Blade spacing: 42 mm.
    • Blade length: 30 mm.
    • Blade width: 21 mm.
    • Blade thickness: 0.5 mm.
    • Zinc coating: 120 g/m2.
    • Weight: 8 kg/coil.
  • BTO-10 and BTO-12 cross type with clips.
    • 96 cm coil diameter, 5 clips/loop, 15 kg/roll.
    • 65 cm coil diameter, 3 clips/loop, 10 kg/roll.
    • 45 cm coil diameter, 3 clips/loop, 10 kg/roll.
  • BTO-10 and BTO-12 cross type without clips.
    • 96 cm coil diameter, 25 kg/roll.
    • 65 cm coil diameter, 25 kg/roll.
    • 45 cm coil diameter, 31 kg/roll.
    • Galvanizing rate: 45 g/m2.
    • Packing: waterproof paper inside, woven bag outside.
  • Razor wire - BTO-22.
    • Coil diameter: 24 inches, 9 kg per coil.
    • Coil diameter: 20 inches, 9 kg per coil.
    • Coil diameter: 1 meter, 10 kg per coil.
  • Electro galvanized razor wire.
    • Blade type: BTO-22.
    • Material: stainless steel 304.
    • 1 meter coil diameter, 10 kg per coil.
    • 1 meter coil diameter, 12 kg per coil.
    • 24 inches coil diameter, 9 kg per coil.
    • 20 inches c diameter, 9 kg per coil.
    • 18 inches diameter, 9 kg per coil.
  • Hot dipped galvanized cross type razor wire.
    • Blade type: BTO-10.
    • Core wire: 2.50 mm.
    • Coil diameter: 45 cm.
    • Coil weight: 7 kg.
    • Blade thickness: 0.50 mm.
    • Clips: 3 tie clips.
    • Zinc coat: 120 g/m2.
    • Tensile strength: 160 kg/mm2.
    • Packing: wrapped with waterproof paper and then wrapped with woven bag.
  • Hot dipped galvanized cross type razor wire.
    • Blade type: BTO-10.
    • Core wire: 2.50 mm.
    • Coil diameter: 75 cm.
    • Coil weight: 11 kg.
    • Blade thickness: 0.50 mm.
    • Clips: 5 tie clips.
    • Zinc coat: 120 g/m2.
    • Tensile strength: 160 kg/mm2.
    • Packing: wrapped with waterproof paper and then wrapped with woven bag.
  • Hot dipped galvanized cross type razor wire.
    • Blade type: BTO-10.
    • Core wire: 2.50 mm.
    • Coil diameter: 95 cm.
    • Coil weight: 15 kg.
    • Blade thickness: 0.50 mm.
    • Clips: 5 tie clips.
    • Zinc coat: 120 g/m2.
    • Tensile strength: 160 kg/mm2.
    • Packing: Wrapped with waterproof paper and then wrapped with woven bag.
  • Barbed wire razor type.
    • Material: stainless steel 304.
    • Type: BTO-18.
    • Covering surface: 1.2 kg/linear meter.
    • Blade thickness:0.5 ± 0.05 mm.
    • Line diameter: 2.5 ± 0.1 mm.
    • Long knives: 18 ± 1 mm.
    • Wide knife: 15 ± 1 mm.
    • Knife spacing: 35 ± 1 mm.
  • Single razor wire.
    • Material: hot dipped galvanized steel and stainless steel.
    • Blade type: CBT-65.
    • Outside diameter: 450 mm.
    • Number of loops: 33.
    • Length of coil: 7 m - 8 m.
  • Razor barbed wire.
    • Blade type: BTO-22, CBT-60 and CBT-65.
    • Material: hot-dipped galvanized steel.
    • Wire diameter: 2.5 mm.
    • Thickness: 0.5 mm.
    • Coil diameter: 600 mm.
    • Length: 12 m.
  • Razor edge wire.
    • Blade type: BTO-65.
    • Material: galvanized steel wire.
    • Thickness: 0.6 mm.
    • Wire diameter: 2.5 mm.
    • Barb length: 65 mm.
    • Barb width: 21 mm.
    • Barb spacing: 101 mm.
    • Outside diameter: 700 mm.
    • Number of loops: 41
    • Standard length per coil: 10 m.
  • Hot dip galvanized razor wire.
    • Blade type: BTO-22.
    • Core wire diameter: 2.5 mm.
    • Blade length: 22 mm.
    • Blade space: 4 mm end to end, 34 mm center to center.
    • Number of loops: 56.
    • Size: coil diameter 650 mm × length 8 m with 5 clips.
    • Size: coil diameter 1 m × length 12 m with 5 clips.
  • Stainless steel razor wire grade 304.
    • Size: coil 650 mm × length 8 m with 5 clips.
    • Size: coil 1 m × length 12 m with 5 clips.
  • Razor wire to BTO-22 cross style.
    • Coil outer diameter: 980 mm.
    • Blade thickness: 0.50 mm.
    • Wire diameter: 2.50 mm.
    • Barb length: 22 mm.
    • Barb width: 15 mm.
    • No. of spirals per coil: 62 to 64 turns.
    • Weight per roll: 12 kg.
  • Stainless steel razor wire.
    • Type: CBT-65.
    • Type: single coil.
    • Outside diameter: 450 mm.
    • Number of loops: 33.
    • Standard length per coil: 8 m.
  • BTO-22 razor barbed wire.
    • 980 mm × 64 loops × 11.8 kg without clips 2000 rolls.
    • 500 mm × 128 loops × 13.8 kg with 5 line clips 2000 rolls.
  • Razor wire cross type.
    • Blade type: BTO-22.
    • Coil diameter: 450 mm.
    • Number of loops: 56.
    • Clips: 3 clips per 8 m or 9 m.
  • Razor wire cross type.
    • Blade type: BTO-10.12.18.22.28.30.
    • Coil diameter: 600 mm.
    • Number of loops: 56.
    • Clips: 5 clips per 8 m or 9 m.
  • Razor wire cross type.
    • Blade type: BTO-10.12.18.22.28.30.
    • Coil diameter: 900 mm.
    • Number of loops: 56.
    • Clips: 5 clips per 12 m or 14 m.
  • Razor wire.
    • Material: SS304.
    • Blade type: CBT-65.
    • Coil diameter: 600 mm.
    • Thickness: 0.5 mm +/0.05
    • Wire diameter: 2.5 mm +/0.10.
    • Razor length: 65 mm +/-2.0.
    • Razor width: 21 mm +/1.0.
    • Razor space: 100 mm +/-2.0.
    • Number of loops: 56.
  • Razor barbed wire, type CBT-65.
    • Material: hot dipped galvanized and stainless steel.
    • Core wire diameter: 2.5 mm.
    • Coil diameter: 44 cm.
    • Blade thickness: 0.5 mm
    • Blade length: 65 mm.
    • Blade width: 21 mm.
    • Blade space: 100 mm.
    • Clips per spiral: 33.
    • Stretch length: 45 m.
    • Weight per roll: 1.2 kg.
  • Hot dipped galvanized razor barbed wire.
    • Type: BTO-10, cross type.
    • Outside diameter: 450 mm, 58 loops, 7 kg.
    • Outside diameter: 600 mm, 56 loops, 9 kg.
  • Razor wire.
    • Material: ASTM A653 hot dip galvanized steel.
    • Core wire diameter: 2.5 mm.
    • Blade type: BTO-12.
    • Blade length: 15 mm.
    • Blade width: 15 mm.
    • Blade thickness: 0.42 mm.
    • Coil diameter: 500 mm.
    • Coil length: 15 m.
    • Coil weight: 11.4 kg.
    • Zinc coating: 100 g/mm2 for both sides and 50 g/mm2 on each side.
  • Razor wire.
    • Material: ASTM A653 hot dip galvanized steel.
    • Core wire diameter: 2.5 mm.
    • Blade type: BTO-22.
    • Blade length: 15 mm.
    • Blade width: 15 mm.
    • Blade thickness: 0.45 mm.
    • Coil diameter: 910 mm.
    • Coil length: 15 m.
    • Coil weight: 11.4 kg.
    • Zinc coating: 60 g/mm2 for both sides and 30 g/mm2 on each side.

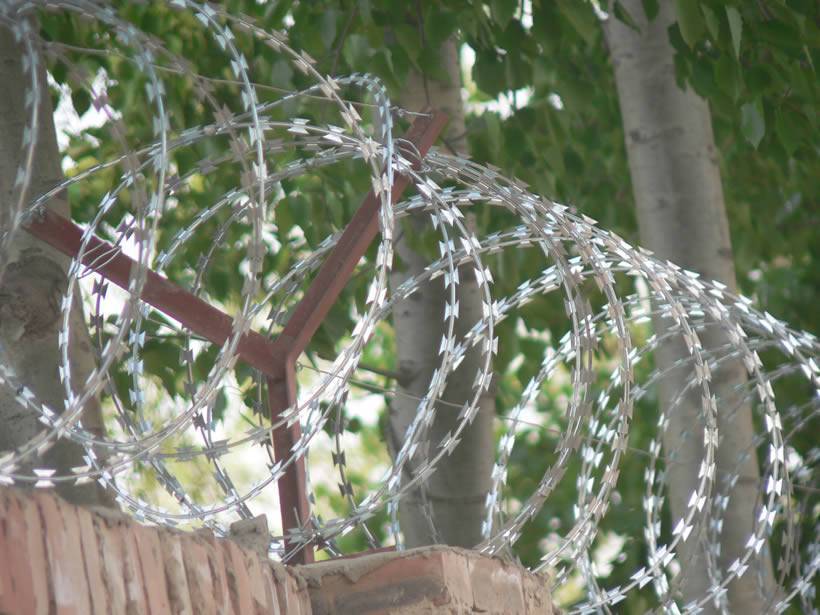

Galvanized razor wire is installed on Y shaped post on wall.
Razor wire is used on wall.
Many coils of razor wire is packed with kraft paper and one coil without packing.
Razor wire is packed with kraft paper.
One coil of razor wire is packed in a carton and the carton is opening.
Razor wire is packed in carton.

Inquiry for Our Product

Anping Mengke Wire Mesh Manufacture Co., Limited
E-mail: info@razorbarbedwirefence.com

When you contact us, please provide your detail requirements. That will help us give you a valid quotation.
